Craftsman houses along the Arroyo

The porch post stands at the foot of a stair street above the Arroyo Seco, and it does something a column on an older porch never does: it widens as it descends, stepping from a slim shaft into a battered base the way a tree flares at the ground. A reader walked past it one warm evening, walked back, put a hand on it, and sent in the question that no one could have answered from the sidewalk: why does the woodwork on these blocks look hand-fitted, as if each piece had been measured against the piece below it?

What the reader asked

The slip, as filed, is narrower than "tell me about Craftsman houses." It asks why the beams and braces near the Arroyo look like furniture rather than framing. That is two questions in one, a question about joinery and a question about supply, and the public record answers both, though never from the same drawer. The style side sits in survey photographs and measured sheets, some of them held by the Library of Congress and others in the archives of groups like Pasadena Heritage. The parcel side sits in the ZIMAS parcel report, the county assessor's roll, and the Highland Park-Garvanza HPOZ file that LA City Planning keeps for the neighborhoods along the water.

A style that chose to show its joints

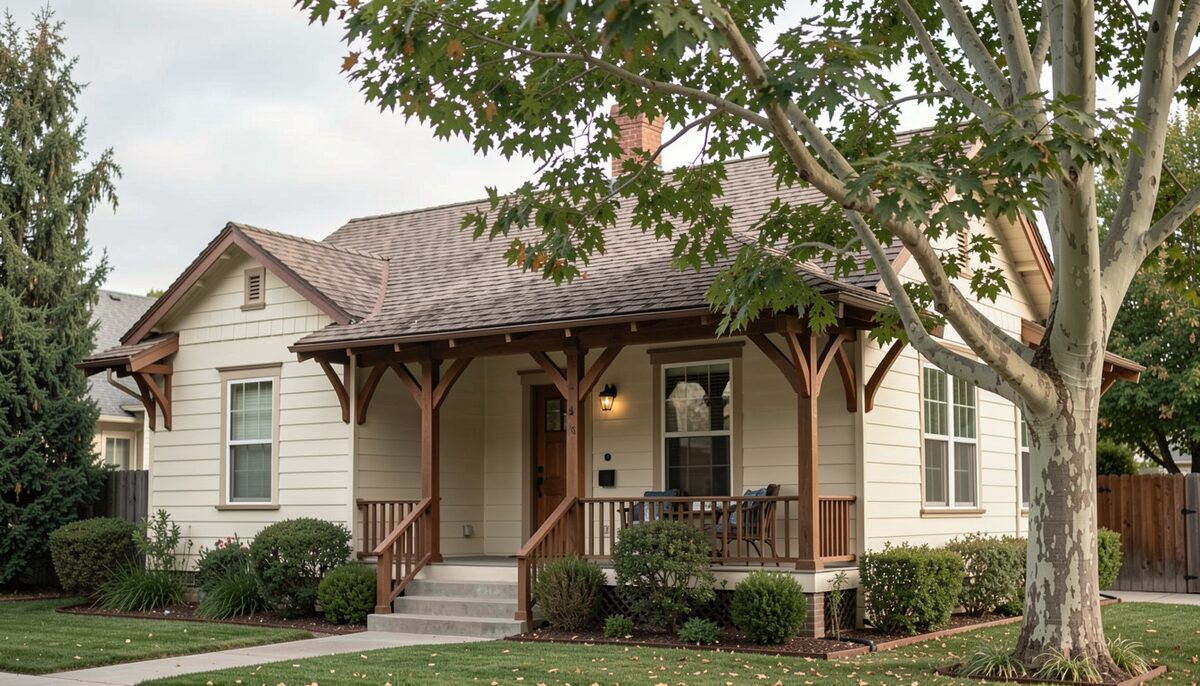

The Craftsman house, as it spread through Northeast Los Angeles between roughly 1905 and 1925, was an argument made in wood. The argument said: do not hide the structure, display it. Rafters run past the wall line so their cut ends show under the eaves. Knee braces, the short diagonal struts beneath the eaves, hold the roof up in plain sight. Beams cross the porch ceiling with the joint left exposed, sometimes with a wooden peg driven through the meeting, a peg that usually carries no load at all and is there to be seen. Anyone who keeps a woodworker's notebook of species and guides will read these beams the way they read a blank on the lathe.

Why does the joinery look hand-fitted?

Because most of it was fitted, on the site, out of stock that left the mill only roughly prepared. The quiet irony of the style is that it rode the machine age: by the nineteen-teens, lumber arrived by rail planed to dimension, and sash, doors and trim came from pattern-book mills catalogued like shoe sizes. What the builder added was the dressing visible at arm's length: the last shaving on a brace, the seat of a rafter tail on the plate, the taper worked into a porch post. The Greenes' houses in Pasadena pushed this to the level of cabinetry, and the federal survey sheets trace it joint by joint, but the belt along the Arroyo ran the same grammar in production lumber. The hand is real; it is simply working faster than the word handmade suggests.

What the slope demanded

The banks of the Arroyo set the terms. Lots step down the hillside in shelves held by stone, and later concrete, retaining walls, and many blocks meet each other in stair streets, public flights of steps that count as streets on the map. A house on a shelf shows its foundation at the front and buries it at the back, which is one reason so many Arroyo-side porches rest on clinker brick: the over-fired, twisted bricks the kilns spoiled, cheap by the pallet and handsome enough that builders stopped hiding them. Upstairs, the sleeping porch, screened on two or three sides, caught the cool air draining down the canyon on summer nights. Style and terrain fit each other here, and both left marks.

What the paper confirms

None of this needs to stay impression once you reach a particular house. The ZIMAS parcel report, free on the LA City Planning site, shows the zoning, the lot, and whether the parcel falls inside the Highland Park-Garvanza HPOZ. The county assessor's roll gives a year built and a footprint, and on these blocks the year often lands within a season or two of 1910. For a house in escrow, the preliminary title report adds the easements of record, worth reading closely during the contingency period, while a buyer can still walk away over a boundary or a shared wall. The HPOZ file itself, viewable at the Planning counter, states whether the building is contributing, a word that carries weight.

Which pieces are protected, and which are only old?

Here the answer has edges. Inside the overlay, the Preservation Plan reviews work visible from the street: a replaced porch post, new windows, a stripped brace. Contributing status protects the character-defining features the survey wrote down, which on these streets usually means the exposed rafter tails, the knee braces, the clinker base, the porch itself. It does not freeze the house; it routes changes through review first. Outside the boundary line, the same brace is just old wood, and the assessor's roll will not tell you the difference. The protection is a line on a map, and ZIMAS draws it.

Where the record stops

The file goes quiet at the workbench. Nothing in it names the man who planed the taper, or settles whether a given knee brace carries load or only meaning (some do one, some the other, and only a look under the eaves decides). The roll gives a year, not a builder; the title report lists liens, not lumberyards; the HPOZ survey describes the post but not the hand. Even the build year is a clerk's entry, one season off the true framing date often enough to matter. Why the reader's post flares at its base is a fact about trees and pattern books, and the public record, obediently, records neither.

One printout, one walk

Two things, then. Pull the ZIMAS report for any address that has caught your eye: two minutes, no account needed, and it will say whether the HPOZ line crosses that lot. If it does, ask at the Planning counter for the property's determination sheet before you plan a single cut. Then walk one stair street end to end at the hour the light comes up the canyon, and read the porches at eye level. The taper, the peg, the spoiled brick: the houses keep the answers on their outside, which was, all along, the argument the style was making.
